Multi Fiber Optic Network Cable , Fiber Patch Cables with Armored

Payment Terms:	T/T,L/C,WU
Special Groups:	indoor fiber cables (4)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 4km/reel

Application: Telecommunications

Brand Name: TESO

Certification: ROHS ,CE

HS Code: 854470000

Production Capacity: 10000000M/week

Delivery Date: 5-7days

Type: Optical Fiber

Number of Conductors: 1, 2, 4, 6, 8, 12

Jacket: PVC, LSZH, PE

Package: 4KM/reel or customized

1. 1 core ,2 core ,4core ,6core,8 core, 12 core Armored fiber optic cable
2. SM and MM are available
3.Used for optical device ,pigtail ,patch cord

Multi Fiber Optic Network Cable , Fiber Patch Cord with Armored

Quick Detail:

1. 1 core ,2 core ,4core ,6core,8 core, 12 core Armored fiber optic cable

2. SM and MM are both available .

3.Used for optical device ,pigtail and patch cord .

Applications

* Pigtails and patch cord

* Ideal for use in optical device, equipment

* Ideal for use in optical distribution, frame

Features

* Armored steel tube for good physical performance

* Flame resistance sheath

* Soft, flexibility for connection

Description

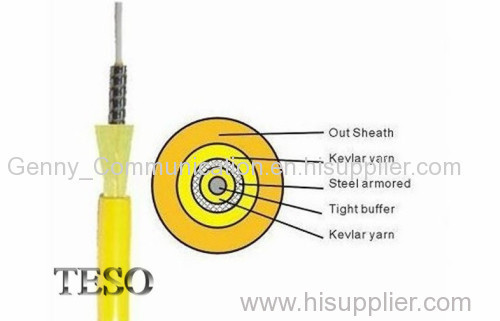

We manufacture indoor flexible armored optical fiber cables by putting a micro diameter flexible stainless steel tube on outside of optical fiber.

It's advantage is high compression resistant, high tensile resistant, rat –bite resistant, micro diameter, good flexibility etc. compared with traditional cable, it can be used to various bad environment and applied extensively to optical fiber temperature sensor project.

It can be compatible with 3.0mm optical fiber connector and the flexible armored fiber optical patch cord can be used like electrical cables, it is the optimal resolution for optical fiber to the desk(FTTD).

Armored Optical Patch cord

	SM	MM
specification	FC/SC/ST/LC	FC/SC/ST/LC
Insertion loss	≤ 0.2dB	≤ 0.3dB
Return loss	≥ 50dB	—
Repeatability	≤ 0.1dB	≤ 0.1dB
application temperature	(- 20℃ +60℃)	(- 20℃ +60℃)

Parameter

Fiber	Nominal Outer	Nominal	Min. Bend	Max. Tensile Strength		Max. Crush Resistance
Count	Diameter	Weight	Radius	Short Term	Long Term	Short Term	Long Term
	mm	kg/km	mm	N	N	N	N/100mm 2
1	2.8	18	25	150	80	5000	3000
2	3.2	20	25	200	100	5000	3000
4	5.9	65	65	400	200	5000	3000
6	5.9	67	65	400	200	5000	3000
8	6.9	75	65	400	200	5000	3000
12	6.9	79	65	400	200	5000	3000

Armored optical fiber cable Specification

	SM	MM
Diameter	3.0MM	3.0MM
standard color	Blue	Grey
cable weight	15kg/km approx.	15kg/km approx.
application temperature	(- 20℃ +60℃)	(- 20℃ +60℃)
storage temperature	(- 40℃ +85℃)	(- 40℃ +85℃)
compression resistant strength	≥100KGf/100MM	≥100KGf/100MM
general attenuation	1310nm≤0.35dB/km	850nm≤3.0dB/km
general attenuation	1550nm ≤0.25dB/km	1300nm ≤1.0dB/km
Length	≤2.6km	≤2.6km
minimum bending radius	≥30D	≥30D

Tight Buffer Fiber cable Color

1	2	3	4	5	6	7	8	9	10	11	12
WH- White	BL- Blue	OR- Orange	GR- Green	BR- Brown	GY- Grey	RE- Red	BK- Black	YE- Yellow	PU- Purple	PI- Pink	AQ- Aqua

Note: The color of tight buffer fibers is arranged from No.1 color successively

Note:

See details of fibre specification in relevant Corning literature
The color identification of the buffer layer complies with the standard color identification set in GB13993.3-2001 Standard
S: short term; L: long term; T.B: tight buffer
Crush load: N/100mm; D: cable diameter

SM cable: white; MM cable: orange;

options available for other colors, PVC, LSZH or HYTREL materials upon request.
